Indicators

Description

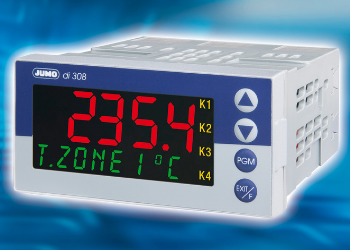

The JUMO di 308 indicator displays temperatures in °C or °F and standard signals in “plain text”.
The basic device is already equipped with one analog input, two binary inputs, two relay outputs, two logic outputs, as well as a voltage supply for 2-wire transmitters. Three extension slots can be fitted with additional inputs and outputs as well as interfaces. The high-contrast, multicolor LCD display for the measured value display and operator guidance consists of a five-digit seven-segment display (value display or parameter setting), an eight-digit 16-segment display with color change (value display, parameter name, channel name, process/alarm text as max. 24-digit running text or pseudo bar graph), and four relay status indications for the binary outputs.

Application

• Oil & Gas Industry
• Food & beverages Industry
• Plant construction and mechanical engineering.
• Pharmaceutical Industries
• Power plant
• Industrial Furnace construction.
• Thermal Industry
• Plastic & packaging
• Water & waste Industry

Features:

• 96 x 48 mm format
• Five-digit LCD display with background lighting (2 lines)
• Digit height 18 mm and 7 mm
• Up to 2 universal measuring inputs
• Inputs/outputs have modular extensibility (see data sheet)
• Voltage supply for two-wire transmitter
• Modbus interface, PROFIBUS-DP interface
• 4 display channels
• 4 limit values are monitored
• Configurable process display text (max. 24-digit running text)
• Alarm signal text with color change green/red (also as running text)
• Min./max. function and hold function
• Math and logic function
• Configuration with setup program
