Dicon Controller
Description

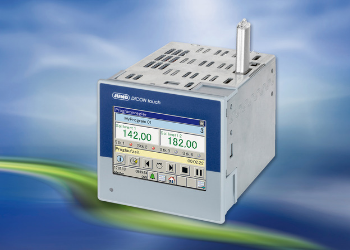

The DICON touch is a two-channel universal process and program controller that displays information using a vibrant TFT color graphics display. The device is operated intuitively by touch.
Both controller channels use the tried-and-tested JUMO control algorithm with two possible optimization options. These enable a simple and highly-accurate startup. As a result, multiple zone control, cascade control, or other complex control tasks are possible.4 analog universal inputs and up to 8 external inputs can record a variety of physical measured values with high precision. Thanks to different output variants, the actuators can be controlled directly in the device with either an analog or digital setup.
Application:
- Industrial furnace construction
- Test chambers and heating cabinets
- Climatic and simulation chambers
- Incubators
- Autoclaves
- Dryer
- Sterilizers
- Heat transfer oil plants
- Plastics industry
- Mechanical and plant engineering
- Test benches
- Regular food and luxury food
- Pharmaceutical and chemical industry
- Use on ships
Features:
- Vibrant TFT touchscreen with intuitive operation
- Precise control of 2 processes
- Easy-to-use program generator control and program entry
- Interfaces: USB host, USB device, Modbus, PROFIBUS DP, PROFINET IO device, and Ethernet
- Process-data recording with tamper-proof data storage
- Individual process-screen display with configurable edit boxes
- Math and logic modules
- Flexible through modular hardware
- Password-protected user management
- Five-digit analog-value display
- Individual user and parameter level
- Control loop and output value monitoring
- Integrated timer (time-switch contacts) as well as service counter and operating hours counter
- Web server for online-visualization via web browser
- Alarm transmission by email
- Protection type IP66
