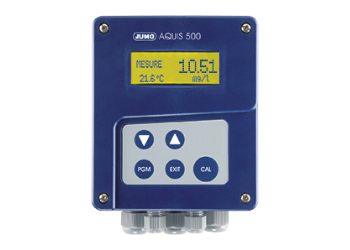

Aquis 500
Description
The device is used to measure/control the pH value, the redox voltage, or for NH3 (ammonia) concentration measurement. The function can be changed directly at the device. Depending on the measured, combination electrodes (e.g. pH/redox combination electrodes, gas-sensitive sensors) or separate versions (glass/metal electrodes with separate reference electrode) can be connected. Temperature measurement is used as the second input value which can be performed with such a device as a Pt100/Pt1000. As a result, the ph value and NH3 measured enable automatic temperature compensation.The devices are operated via precise keys and a large LCD graphic display. This display allows clear legibility of the measured value. The parameter display in plain text facilitates configuration and supports the user in correctly programming the device.
Application:
- Drinking water monitoring and processing
- Galvanic
- Process technology
- Water and wastewater technology
- Drinking and well water, boiler supply water
- Greenhouse technology
- Swimming pool
- Fishkeeping (also seawater
Features:
- Automatic temperature compensation
- Display visualization is selectable: large digits, bar graph, or trend display
- Solderless connection technology
- Calibration options according to measured one/two/three point calibration
- Calibration logbook
- Actively impedance measurement
- Asymmetrical and symmetrical connection of ph value sensors
- Connection option of pH-ISFET sensors through the integrated output to the voltage supply of the sensor
- Selectable languages: English, German, French; additional languages can be added via the setup program
- With setup program: easy-to-use programming, plant documentation, download of additional user languages
