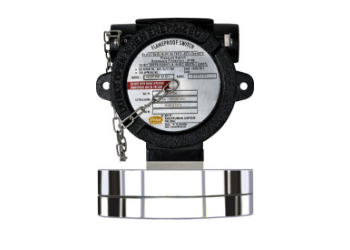

Flame Proof Pressure Switches

Description

Flame Proof Pressure Switches have been designed for use in areas which are potentially explosive. These can be used by selecting an appropriate construction, for gas groups IIA, IIB and IIC. They can also be used in underground mines by selecting Grey CI flameproof heads.

Application:

• Oil & Gas
• Petrochemical
• Refineries
• Mines
• Bulk drug & pharma
• Chemical industries

Features:

• Compact, rugged Design
• Enclosure Protection: IP66 standard
• Reliable, accurate micro switches used
• Customized Micro switch arrangement can be provided, on request
• Easy, safe wiring connections
• High/Low pressure options available
• Accuracy:+/-1% FSR / +/-2% FSR
• Warranty 2 Years

Specification:

• Storage Temp.: Atm. Temperature
• Operating ambient temp.: 0 to 60 deg. C
• Media Temp.: for Non-metallic diaphragms 80 deg. C max., higher with metal diaphragms
• Set point repeatability: +/- 1% over full range
• Enclosure Details: Al grade LM6 /Grey Cast Iron / Stainless Steel Casing & Cover
• Switch Output: 1 SPDT (2 SPDT on Request)
